FAA Federal Aviation Regulations (FARS, 14 CFR)

(a) Continuous maximum icing. The maximum continuous intensity of atmospheric icing conditions (continuous maximum icing) is defined by the variables of the cloud liquid water content, the mean effective diameter of the cloud droplets, the ambient air temperature, and the interrelationship of these three variables as shown in Figure 1 of this appendix. The limiting icing envelope in terms of altitude and temperature is given in Figure 2 of this appendix. The interrelationship of cloud liquid water content with drop diameter and altitude is determined from Figures 1 and 2. The cloud liquid water content for continuous maximum icing conditions of a horizontal extent, other than 17.4 nautical miles, is determined by the value of liquid water content of Figure 1, multiplied by the appropriate factor from Figure 3 of this appendix.

(b) Intermittent maximum icing. The intermittent maximum intensity of atmospheric icing conditions (intermittent maximum icing is defined by the variables of the cloud liquid water content, the mean effective diameter of the cloud droplets, the ambient air temperature, and the interrelationship of these three variables as shown in Figure 4 of this appendix. The limiting icing envelope in terms of altitude and temperature is given in Figure 5 of this appendix. The interrelationship of cloud liquid water content with drop diameter and altitude is determined from Figures 4 and 5. The cloud liquid water content for intermittent maximum icing conditions of a horizontal extent, other than 2.6 nautical miles, is determined by the value of cloud liquid water content of Figure 4 multiplied by the appropriate factor in Figure 6 of this appendix.

Figure 1- Continuous Maximum (Stratiform Clouds)
Liquid Water Content vs Mean Effective Drop Diameter



Figure 2--Continuous Maximum (Stratiform Clouds)
Ambient Temperature vs Pressure Altitude

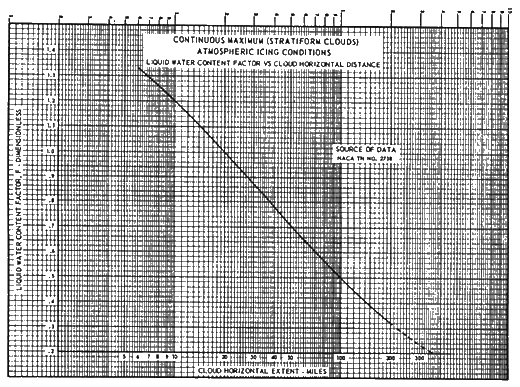

Figure 3--Continuous Maximum (Stratiform Clouds)
Liquid Water Content Factor vs Cloud Horizontal Distance



Figure 4--Intermittent Maximum (Cumuliform Clouds)
Liquid Water Content vs Mean Effective Drop Diameter

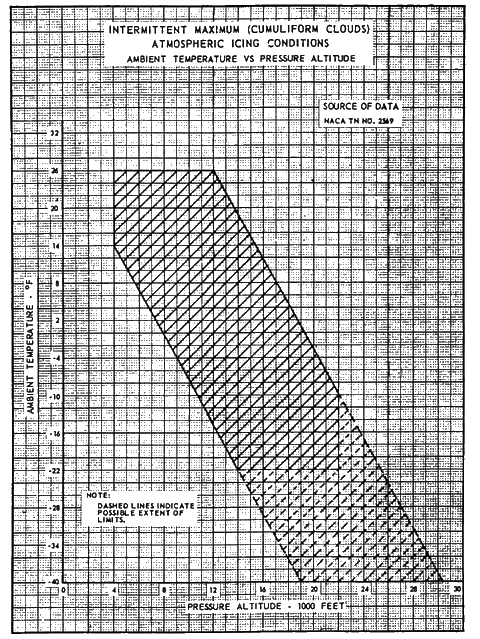

Figure 5--Intermittent Maximum (Cumuliform Clouds)
Ambient Temperature vs Pressure Altitude

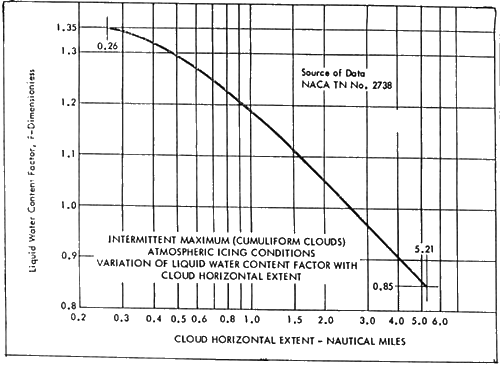

Figure 6--Intermittent Maximum (Cumuliform Clouds)
Variation of Liquid Water Content Factor with
Cloud Horizontal Extent




[Amdt. 29-21, Eff. 3/2/83]
